Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH

Name: Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH
Brand: Twilight Optic
Price: 1 USD

Wholesale Vertical Dome Splice Closure Fiber Optic Cable Connection Box FTTH from china suppliers

Brand Name : Twilight Optic

Model Number : TW-GJSM3/RS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 10-15 work days

Packaging Details : Standard export carton packing.

product name : splice enclosure 96 cores

Dimension(mm) : 435mm x Φ190mm

Number of Splice Trays : 1~4ieces(24F/tray)

Number of Inlet/Outlet Ports : 4 Pieces(1 x Oval + 3 x Round)

Diameter of Fiber Cable : Φ7mm~Φ18mm

Max capacity : 96Core

Contact Now

96 Cores Vertical Dome Fiber Optic Cable Connection Box Fiber Splice Closure Box

Product Description

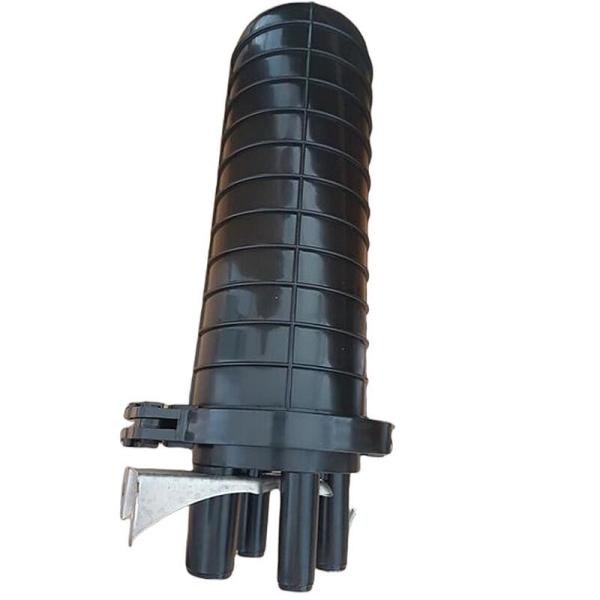

The GJSM3-RS Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four entrance ports on the end (three round ports and one oval port).

Application

1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver

Model	TW-GJSM3/RS
Type	Dome type
Sealing Structure	Heat shrinkable
Number of Inlet/Outlet ports	4 ports
Cable Diameter	7-18mm
Maximum Capacity	96 Cores
Capacity per Splice Tray	24 Cores
Quantity of Splice Tray	4pcs
Body Material	PC
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	435(H)×190(D)mm
Net Weight	2.5KG
Temperature	-40℃~65℃
